Site 1: Mt. Hebo

Click here to read all about the Mt. Hebo 147.22 MHz voice repeater

Facilities / Room:
Concrete block building, fenced site
24 hour security, monitored alarm system
Video surveillance system, offsite storage


Power:
Commercial AC power
120VAC rack mount UPS
Propane generator for AC backup
12VDC battery bank for DC backup


Antennas:
Base elevation: 3100 feet ASL
60 foot self supporting tower
VHF - SCALA collinear, Tram dual band
UHF - Sinclair 10dbi, Tram dual band
UHF linking - Maxrad 6 element Yagi
SHF - Andrew 24dbi reflector


Radios:
Voice repeater - 147.220 Standby repeater system, Motorola Micor
Voice repeater - 440.900 Motorola Radius R100, 50 watt Midland PA, Arcom RC-210 Controller
Voice repeater - 441.250 Motorola Radius R100, 100 watt Johnson PA, Zetron 35A interconnect
APRS Weather/Telemetry/Digi - 144.390 Yaesu, KPC3+ (HEBOWX)
Custom link repeater - Midland 70-1526 radios
Remote base - Kenwood TM-G707A
GE VHF and GE UHF Maintenance Radios


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator
Rack Mount Pentium PC running Digital Video Recording Software
Custom 2.4Ghz tower mounted wireless bridge
Netgear WLAN Router
Stardot Express 6 camera server
Interior and Exterior cameras


Historic Photos:
Mt. Hebo history as an AFS radar base; courtesy of David Casteel.

Click for high resolution

Radio Suite

Click for high resolution

Antennas


Site 2: Lincoln City

Facilities / Room:
Concrete block building
24 hour security, monitored alarm system


Power:
Commercial AC power
12VDC battery backup


Antennas:
Base elevation: 80 feet ASL
100 foot self supporting tower
VHF - fiberglass collinear
UHF - custom fiberglass collinear


Radios:
Voice repeater - 147.040 Spectrum (RACES only)
Voice repeater - 442.600 Hamtronics, Cat200 Controller
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (LINCON)


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator


Click for high resolution

Radio Suite

Click for high resolution

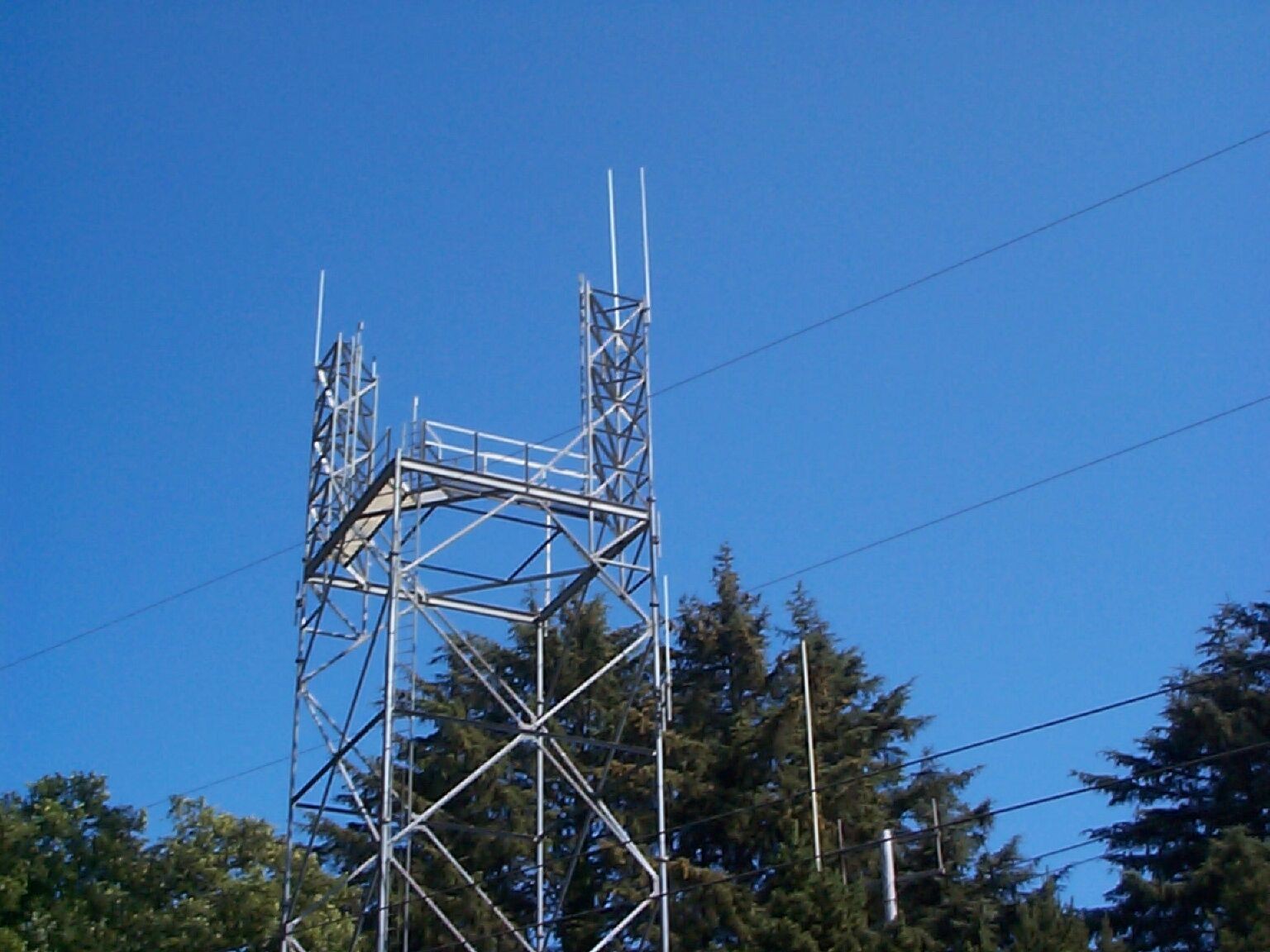

Antennas


Site 3: Cape Foulweather

Facilities / Room:
Concrete block building
24 hour security, monitored alarm system


Power:
Commercial AC power
Propane generator backup
12VDC battery backup


Antennas:
VHF - SCALA collinear, Fiberglass collinear, yagi
UHF - 10dbi fiberglass collinear


Radios:
Voice Repeater - 145.370 Spectrum, (RACES only)

Voice Repeater - 147.300 Spectrum
Voice Repeater - 444.750 GE MastrII, Arcomm RC210 controller
Packet Node - 145.090 Motorola CDM750, TNC2 (NPT)
Packet Node - 223.580 Kenwood TM-331A, TNC2 (#NPT)
Packet Node - 430.150 Kantronics D4-10, TNC2 (#NPT4)
APRS Weather/Telemetry/Digi - 144.390 Motorola MaxTrac, KPC3+ (NEWPRT)
Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator


Click for high resolution

Voice Repeaters

Click for high resolution

APRS & Packet Nodes


Site 4: Rockaway Beach

Facilities:
Weatherproof cabinet, alarm monitored
30' Rohn 25 tower with 10' mast


Power:
Commercial AC power
Battery Backup


Antennas:
VHF - Diamond omni
VHF Weather radio - 3 element DB products yagi
VHF/UHF - Diamond dual band omni (APRS/Voice)
UHF Link - 5 element yagi
Wifi link - 2.4Ghz 15dbi yagi


Radios:
Voice repeater - 442.750 Motorola R100 repeater, Arcom RC-210 controller
Voice half duplex - 147.060 GE MVS
Link radio - Midland 70-1526A
VHF Weather receiver - Reecom
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (ROCKWY)


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator
Linksys 2.4Ghz client adapter


Click for high resolution

Radio Enclosure

Click for high resolution

Antennas


Site 5: Rose Lodge

Facilities / Room:
ODOT building


Power:
Commercial AC power
12VDC Battery Backup


Antennas:
Diamond dual band collinear


Radios:
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (ROSLDG)


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator



Site 6: Cline Hill

Facilities / Room:


Power:


Antennas:


Radios:
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (PATSY)


Other:
Peet Brothers Weather Station
WxTrak



Site 7: Cape Perpetua

Facilities / Room:


Power:


Antennas:


Radios:
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (PERPET)


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator



Site 8: Cape Meares

Facilities / Room:


Power:


Antennas:


Radios:
APRS Weather/Telemetry/Digi - 144.390 Midland 70-340, KPC3+ (MEARES)


Other:
Peet Brothers Weather Station
OCRG WxDOG Wx Data Translator
